Data Layout
The iex2h5 system organizes market data into a structured HDF5 container, which behaves like a logical file system — grouping time-series datasets into typed, self-describing directories.
It supports two primary representations of the market:
- IRTS (Irregular Time Series): tick-by-tick bid, ask, and trade events
- RTS (Regular Time Series): resampled OHLC-style snapshots at fixed intervals

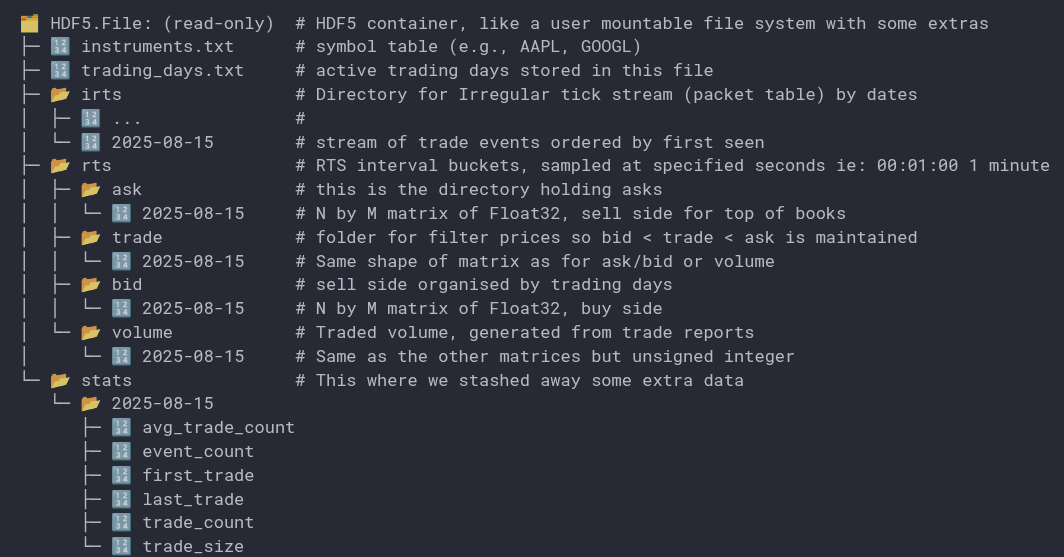

While the example diagram shows both IRTS and RTS stored in a single HDF5 file, this is mostly for convenience and demonstration purposes. In real-world, high-throughput deployments (e.g. streaming tick data from multiple sources 24/7), this is not recommended without an extra layer due to HDF5’s Single-Writer, Multiple-Reader (SWMR) constraint.
🗃 Recommended Practice: Store IRTS (the raw tick stream) in compressed, append-only containers → e.g. one file per exchange say: iex.h5, dydx.h5, binance.h5, ... then generate RTS datasets on demand from the IRTS archive say: delta-neutral-strategy-backtest.h5
This design balances long-term archival with real-time analytics, and ensures data remains accessible across languages and platforms without compromising write performance.
Structure of the RTS Price Matrix

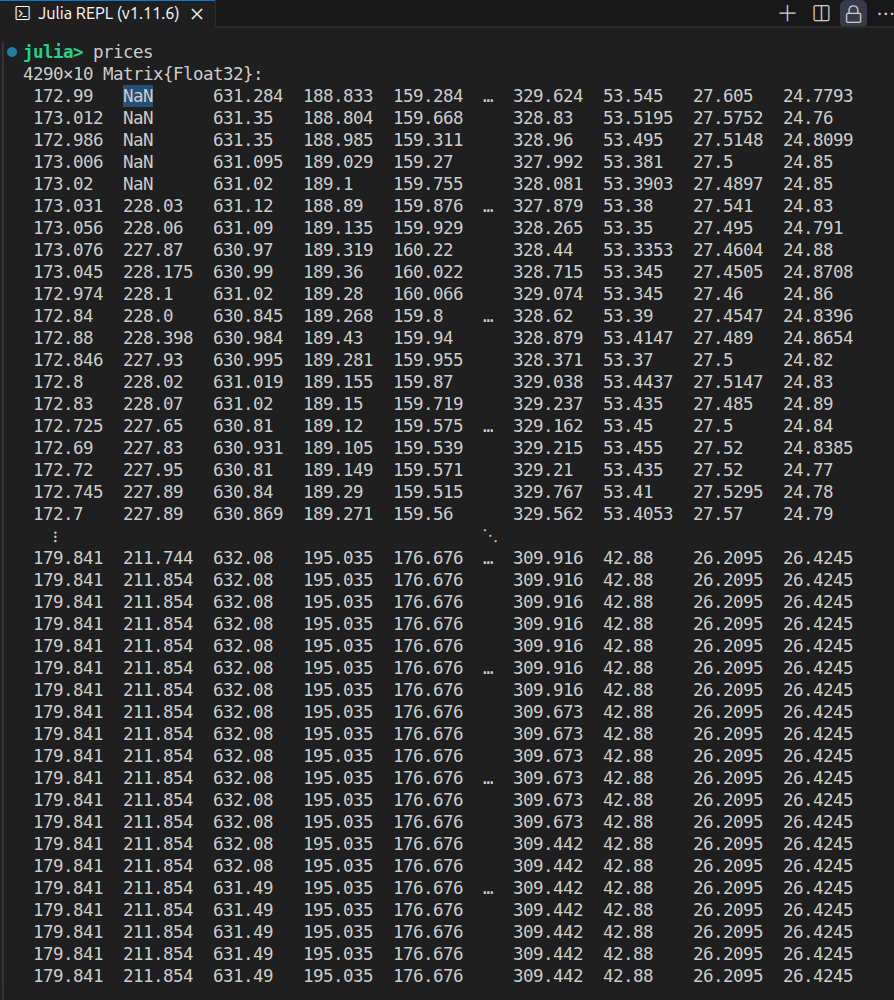

The prices matrix shown above has 4290 rows and 10 columns. Each row marks the end of a fixed-duration trading interval — typically aligned with the Close in an OHLC series — while each column corresponds to a different stock or instrument. Column-to-symbol mappings can be reverse-resolved using the accompanying instruments.txt index file. Most cells contain regular price values, but some could be marked as NaN, which stands for “Not a Number.”
In numerical computing, NaN (short for Not a Number) is a special value used to represent missing or undefined data. This is especially common in financial time series — for example, when a stock hasn’t traded during a given interval, or its first quote hasn’t appeared yet. Instead of filling these gaps with zeros or placeholders, NaN makes the absence explicit. For highly liquid symbols like NVDA, AMZN, SPY, GOOGL, AMD, or AAPL, you're unlikely to see NaNs — these stocks trade continuously. But for thinly traded names, delisted symbols, or stale contract IDs still present in the dataset, NaN values will show up, indicating periods with no valid market data.
In general, trades occur between the bid and ask prices. The price matrix reflects this relationship: when both bid and ask quotes are present, a mid-price is computed by the filtering mechanism and recorded as the representative price. However, these synthetic midpoints are not included in the trading statistics — this ensures that only actual executed trades contribute to volume or activity metrics, making it easier to filter out illiquid or infrequently traded instruments.
Tickdata stream

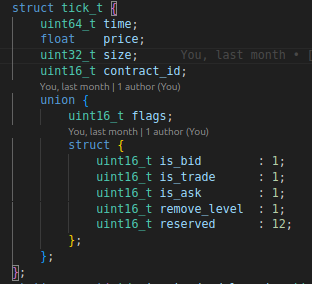

The tick_t structure represents the most granular level of market activity in the IEX2H5 system — capturing individual bid/ask quotes and trades as they happen. Each tick includes a high-precision timestamp (as recorded by the exchange), the price, size, and a compact contract ID that identifies the security. The final field, flags, is a bitfield union that efficiently encodes metadata about the event — indicating whether it’s a bid or ask quote, a trade, or a level removal from the order book.
In practice, this tick data is stored as a vector of structs — conceptually similar to working with a large std::vector<tick_t> in C++. This vector is serialized using HDF5’s compound datatype support and stored in compressed blocks called chunks. This binary layout preserves the full fidelity of the market stream, making it suitable for market replay, order flow analysis, and fine-grained statistical modeling. With over 245 million ticks in the example below, efficient storage and compression become essential — and that's exactly what IEX2H5 delivers through its compact layout and gzip filtering.
245503474-element Vector{@NamedTuple{time::UInt64, price::Float32, size::UInt32, contract_id::UInt16, flags::UInt16}}:
(time = 0x185896be8c2b291c, price = 629.45996, size = 0x00000065, contract_id = 0x029d, flags = 0x0004)
(time = 0x185896be8c2b291c, price = 629.39996, size = 0x00000064, contract_id = 0x029d, flags = 0x0001)
(time = 0x185896be8c2c14b1, price = 206.76999, size = 0x00000078, contract_id = 0x01bf, flags = 0x0004)
⋮
(time = 0x1858ac06c1e9485a, price = 38.45, size = 0x0000012c, contract_id = 0x0d86, flags = 0x0004)
/stats/ — Intraday Trade Statistics
Summarized metrics for each trading day, useful for sanity checks, feature extraction, or visualization.
| Dataset | Description | Motivation |
|---|---|---|
event_count |
Total events seen on the wire | Filter out slow lazy stocks: asks and bids are included |
first_trade |
Timestamp of first trade (per symbol) | Filter out stocks by intra day time |
last_trade |
Timestamp of last trade (per symbol) | |
trade_count |
Total trades (per symbol) | Filter out intrequently traded stocks |
trade_size |
Average trade size | Indicator for low or high traded volume |
Compression
The iex2h5 tool supports gzip compression levels from --gzip 0 (no compression) to --gzip 9 (maximum). Typical results:
- IRTS datasets see a 3–5× space reduction
- Compared to PCAP, total savings can reach 6–10×, as irrelevant protocol data is stripped away
This makes HDF5 a vastly more efficient archival format than raw pcap.gz, especially for long-term retention or transfer between systems. For teams with large-scale cloud storage needs, a commercial version is in development offering up to 100× compression. This unlocks:
- Dramatic savings on object storage costs (S3, GCS, Azure)
- Faster network sync and replication
Want early access? Contact me to discuss tailored storage pipelines for your use case.
